Power Cord Bending Tester for Flexible Cables & Appliance Power Supply
HongCe's Power Cord Bending Tester evaluates the durability and mechanical strength of flexible cables and appliance power supply cords under real-world conditions. This multi-station tensile strength testing machine ensures compliance with international IEC standards while delivering reliable, repeatable results for quality assurance.
Product Features
- Multi-station design for enhanced testing efficiency
- Simultaneous bending fatigue and tensile strength testing capabilities
- Stable mechanical structure ensures test result repeatability
- Adjustable bending angle, speed, and test cycle count
- Independent load control for each test station
- User-friendly control interface for easy operation and maintenance
- Engineered for long-term durability testing applications
International Reference Standards
IEC 60884-1 - Clause 23 & 24: Mechanical strength and flexible cord anchorage
IEC 60335-1 - Clause 25: Supply connection and external flexible cords
IEC 60227 / IEC 60245 - Flexible cables for rated voltages
Technical Parameters
| Parameter |
Specification |
| Power Supply |
AC220V, 60Hz (customizable) |
| Test Stations |
6 stations with 6 sets of clamps |
| Flexing Cycles |
1-999,999 (adjustable) with individual and general counters |
| Flexing Rate |
10-60 rpm (adjustable) |
| Flexing Angles |
Swivel angle options: 45°, 60°, 90° |
| Sample Connections |
6 connecting wires |
| Weights |
10N/20N*6 (UL113g and 284g weights) |
| Breaking Indication |
Visual indicator display |
| Dimensions |
870mm × 610mm × 820mm (L×W×H) |
| Compliance |

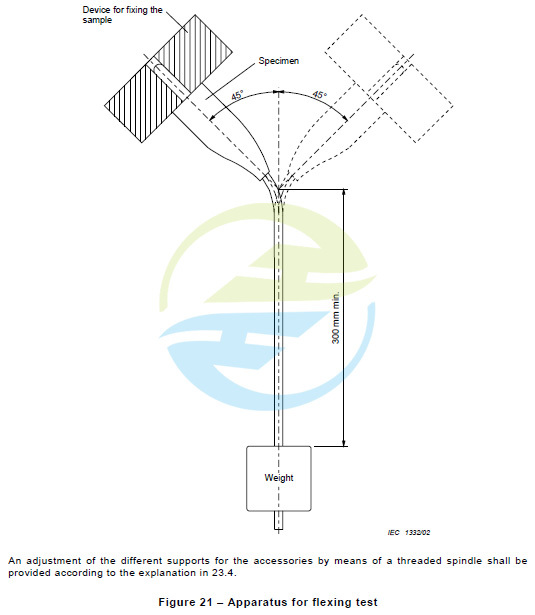

IEC884-1 Figure 21 and clause 23.4, IEC320-1, VDE0620 |
| Mechanical Principle |
Electric motor-driven crank block on reduction gearbox for reciprocating action |
Product Images
Frequently Asked Questions
Is this tester suitable for different cord diameters?
Yes, interchangeable fixtures allow testing of various cable sizes and diameters.
Can test parameters be customized to specific standards?
Absolutely. HongCe supports parameter customization based on IEC, UL, EN, or customer-defined requirements.
How many stations can operate simultaneously?
The number of test stations can be configured according to your specific testing capacity needs.
Is calibration support provided?
Yes, calibration guidance and documentation are available upon request to ensure testing accuracy.
Is the machine suitable for continuous operation?
The tester is specifically designed for long-term endurance testing with stable performance and reliability.
